The cost-effective high-tech end solution for all demanding environments.

Washdown Housings

Together with you, we configure your desired stainless steel housing unit with appropriate seals, even for extreme areas of application, and deliver them to you pre-assembled.


Washdown Housings

Washdown Housings are the cost-optimal high-tech end-of-line solution for all environments such as (e.g. in the food processing industry) in which aggressive influences (salt, moisture, dirt, chemicals) act on the bearing units used and significantly shorten the service life of the bearing units.

Problematic use of plastic housings

Plastic housings can only withstand aggressive environments to a degree, until failure occurs due to swelling, brittleness or fatigue due to high mechanical forces, with all the negative consequences for production and the associated costs.

Problematic use of gray cast iron housings

Gray cast iron housings can withstand higher forces, but rust in aggressive environments and cannot be used in food technology due to hygiene regulations.

Problematic use of bearings made of stainless steel (e.g. bearing SUC 210)

High price, limitation when absorbing forces (softer, stainless steel; high wear) and the only protection from the environment is only provided by a sealing washer on the bearing itself. The only advantage: Food-safe in combination with food-safe fat.

Washdown Housings

The optimal solution for industrial bearing units

With a high-end sealing solution, assemblies enable the user to use the housing made of stainless steel F316 (1.4404) in combination with the appropriate choice of grease, ball bearings made of roller bearing steel (e.g. 100Cr6) in aggressive environments and thus save the Use of expensive storage solutions made of softer, stainless steel, weak plastic housings or rusting gray cast iron housings.

Construction options

  • Selection of the right bearing washdown housing for every application
  • Selection of the right sealing solution
  • Selection of the right lubricant solution
  • Design as a loss of grease lubrication variant or pressure-tight variant
  • Independence from bearing manufacturers


  • Higher system reliability through the use of more heavily designed bearings
  • Reduction of costs over time for the plant operator
  • Up to 5 times higher load capacity of the storage unit

Practical example:

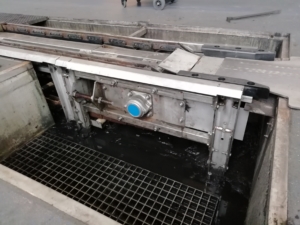

Bearing survival time for assemblies of a customer in the mussel processing industry in the Netherlands could be optimized from 3-4 months to 6 years.

How can we help you?

Offer, special designs and contact

We would be happy to inform you about our products, please use our contact form or send us an email to info@ims-forgings.com.
