The cost-effective high-tech end solution for all demanding environments.

EXT – Conveyor Tension F316 (1.4404) Washdown Bearing Housing

A new generation of washdown bearing housings for corrosion resistance and minimal maintenance.

Washdown housings

EXT – Conveyor Tension F316 (1.4404) Washdown Bearing Housing

The EXT Washdown Bearing Housing is the first tensioned conveyor housing on the market with a solid housing body made of F316 (1.4404) cast without cavities.

Designed for harsh environments
All Extreme Bearing Housings are specially designed for corrosive and/or abrasive environments.

The area of application of Extreme Bearing units starts where conventional housing units can no longer offer protection for the installed bearing.

Longer  bearing service life
Extreme bearing housings make it possible for the installed bearing to achieve its maximum calculated technical service life for the respective application. The numerous configuration options (seals, lubricants) of the housing help to ensure stable and smooth operation of challenging sections within the production line.

Independence from bearing brands
Extreme bearing housings are compatible with every brand of  bearing. Extreme Bearing Housings can be equipped with any bearing according to your preferences and technical requirements.

Washdown housings

EXT – Conveyor Tension F316 (1.4404) Washdown Bearing Housing

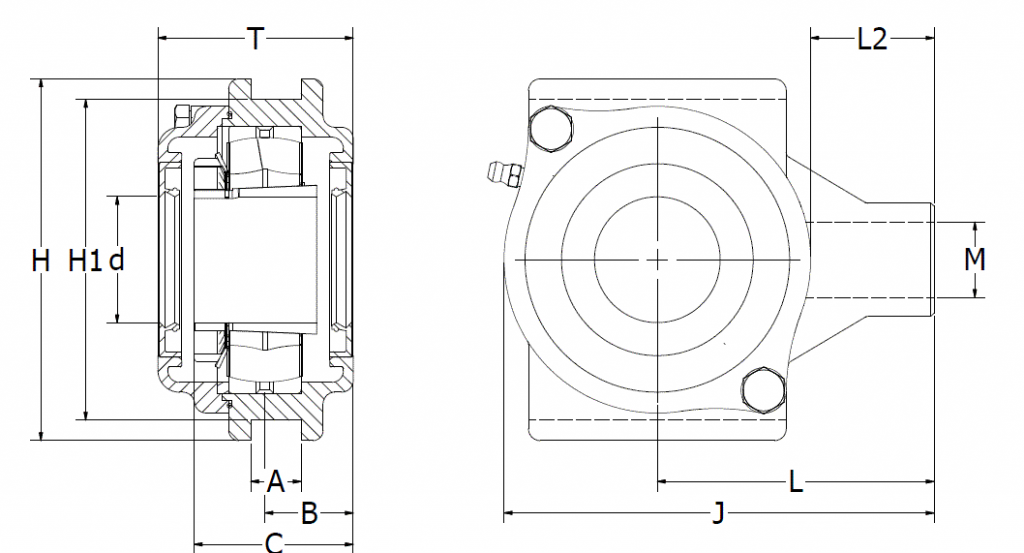

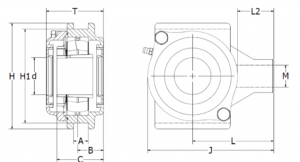

Extreme Bearing EXT Lagergehäuse Skizze

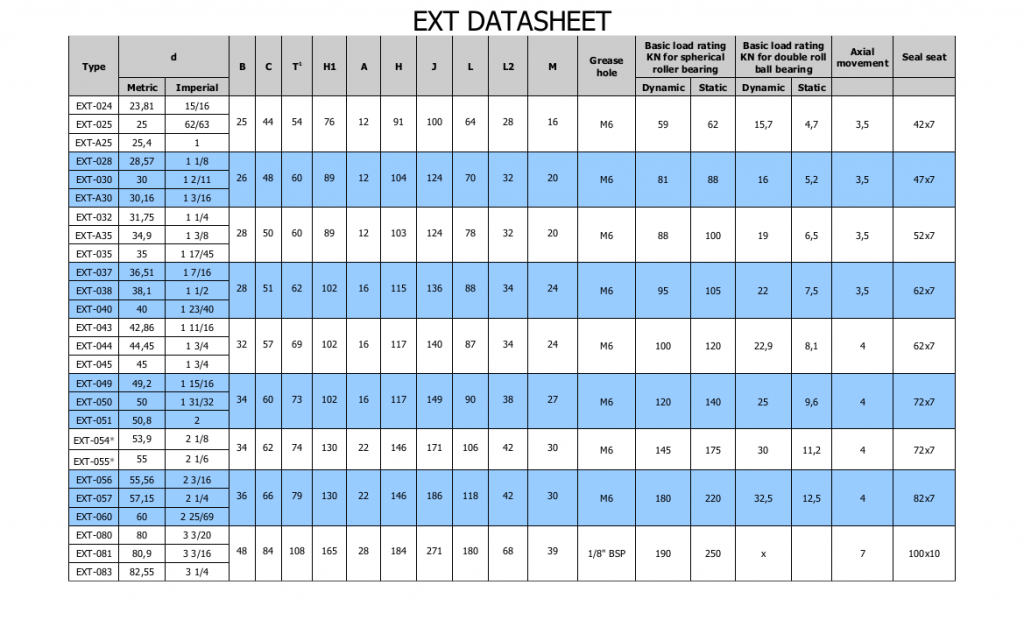

Extreme Bearing EXT Lagergehäuse Datenblatt

How can we help you?

Offer, special designs and contact

We would be happy to inform you about our products, please use our contact form or send us an email to info@ims-forgings.com.
