The cost-effective high-tech end solution for all demanding environments.

EXF – 4-Hole Flanged F316 (1.4404) Washdown Bearing Housing

A new generation of washdown bearing housings for corrosion resistance and minimal maintenance.

Washdown housings

EXF – 4-Hole Flanged F316 (1.4404) Washdown Bearing Housing

The EXF housing is the first 4-hole flanged housing form on on the market with a solid housing body made of AISI F316 (1.4404) cast without cavities.

Designed for harsh environments
All Housings are specially designed for corrosive and/or abrasive environments.

The area of application starts where conventional housing units can no longer offer protection for the installed bearing.

Longer  bearing service life
The Housings make it possible for the installed bearing to achieve its maximum calculated technical service life for the respective application. The numerous configuration options (seals, lubricants) of the housing help to ensure stable and smooth operation of challenging sections within the production line.

Independence from bearing brands
The housings are compatible with every brand of  bearing. Extreme Bearing Housings can be equipped with any bearing according to your preferences and technical requirements.

Washdown housings

EXF – 4-Hole Flanged F316 (1.4404) Washdown Bearing Housing

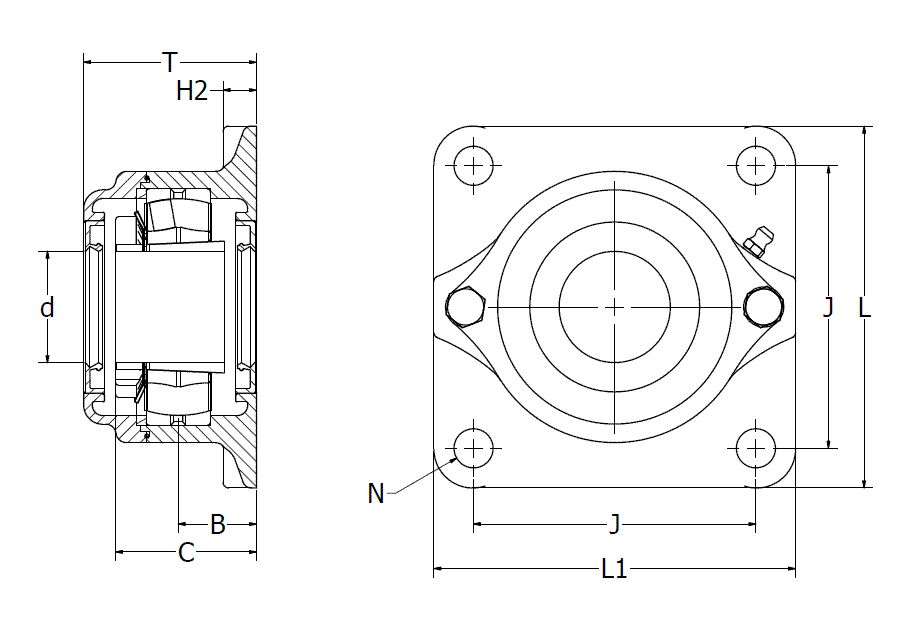

Extreme Bearing EXF Lagergehäuse Skizze

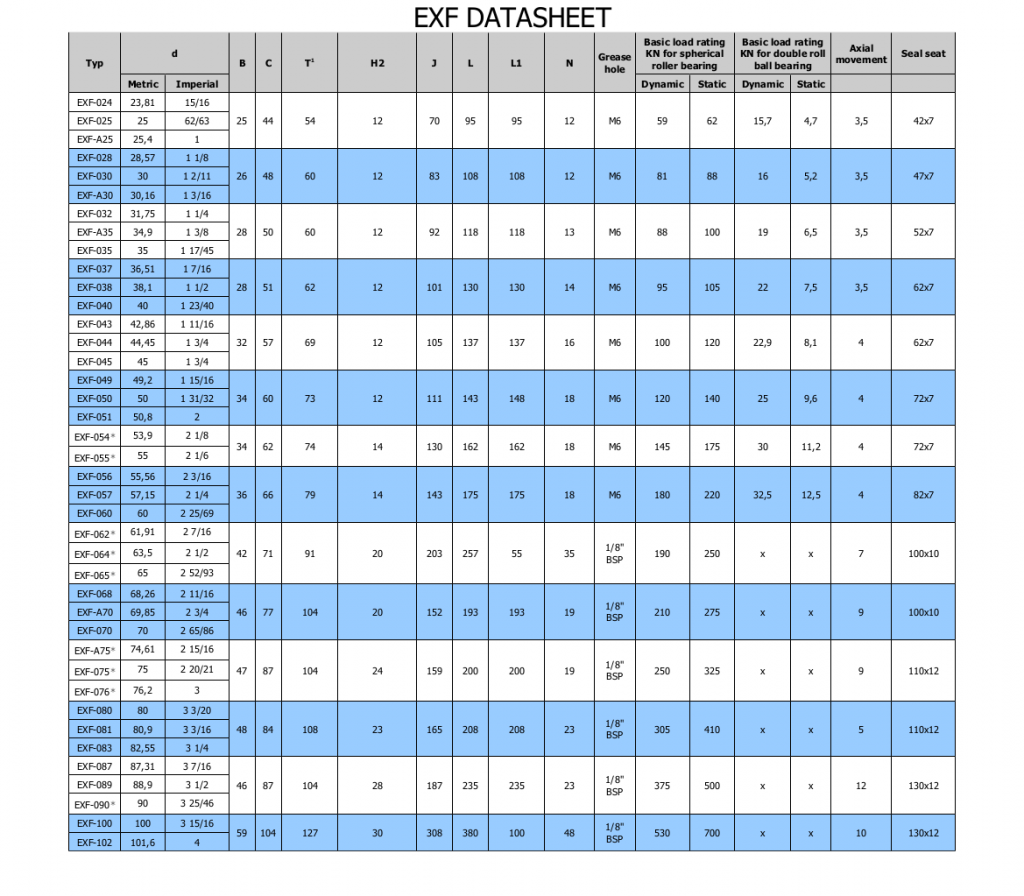

Extreme Bearing EXF Lagergehäuse Datenblatt
