The cost-effective high-tech end solution for all demanding environments.

EXS – Compact Pillow Block F316 (1.4404) Washdown Bearing Housing

A new generation of washdown bearing housings for corrosion resistance and minimal maintenance.

Washdown housings

EXS – Compact Pillow Block F316 (1.4404) Washdown Bearing Housing

The EXS housing is the first compact Pillow Block Washdown Housing on the market with a solid housing body made of AISI F316 (1.4404) cast without cavities.

EXS plummer block housings can handle high speeds and high radial loads, but only minimal axial thrust. These pillow blocks can be mounted vertically or horizontally.

Designed for harsh environments
All Housings are specially designed for corrosive and/or abrasive environments.

The area of application of the units starts where conventional housing units can no longer offer protection for the installed bearing.

Washdown housings

EXS – Compact Pillow Block F316 (1.4404) Washdown Bearing Housing

Longer  bearing service life
The housings make it possible for the installed bearing to achieve its maximum calculated technical service life for the respective application. The numerous configuration options (seals, lubricants) of the housing help to ensure stable and smooth operation of challenging sections within the production line.

Independence from bearing brands
The housings are compatible with every brand of  bearing. Extreme Bearing Housings can be equipped with any bearing according to your preferences and technical requirements.

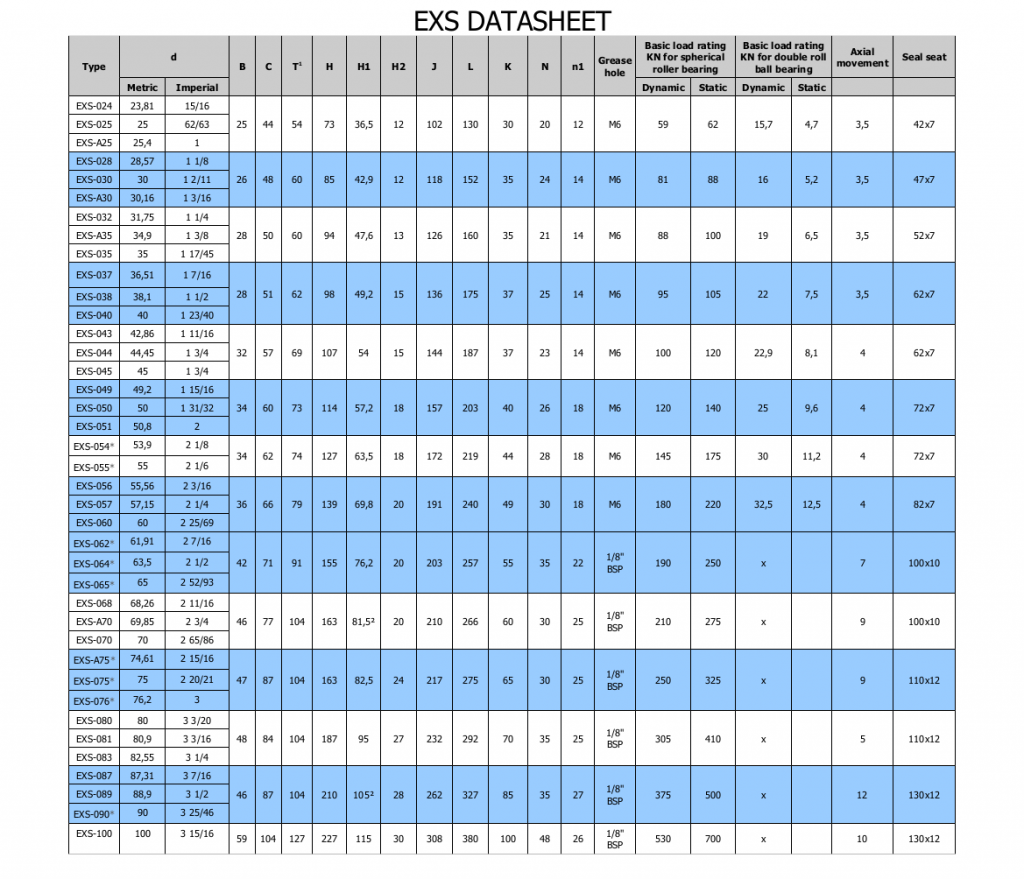

Extreme Bearing EXS Lagergehäuse Datenblatt

How can we help you?

Offer, special designs and contact

We would be happy to inform you about our products, please use our contact form or send us an email to info@ims-forgings.com.
